UFO High Bay
100W UFO LED High Bay Light
Specification
Product Size: Dia.278xH60mm
Part Number: KLM-HB100W-A
Material: Aluminum Body + PMMA diffuser
Light Source: PHILIPS 3030SMD LED
Input Voltage: AC100-240V 50/60Hz
Watts: 100W
Luminous Efficacy: 110-120LM/W
Lumen Output: 5500-6000LM
CCT: Warm White(2800-3000K), Natural White(4000-4500K), Daylight White(5000-5500K), Cold White(6000-6500K)
CRI: > 80 Ra
Beam Angle: 100 degrees
PF: >0.95
Protect Grade: IP65
Driver Brand: Mean Well
Certificate: TUV/UL/SAA/CE/RoHS
Manufactures Warranty: 5 years

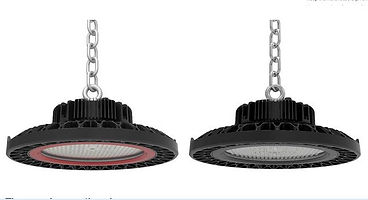

150W UFO Led High Bay Light
150W Industrial LED Warehouse High Bay Light for Factory in UFO Shape 35% off !!! we promise Best price with good quality, USD77.7 to celebrate 10th anniversary Features: 1. Philips 3030 leds up to 150lm/W 2. Meanwell HBG driver , 7-10 years warranty 3. High efficient up to PF 0.99 4. CRI >...
Features:
1. SMD 3030 leds up to 150lm/W
2. Meanwell HBG driver, 7-10 years warranty
3. High efficient up to PF 0.99
4. CRI > 80Ra
5. 3000-8000K CCT optional
6. Private model
7. Dimmable, mic sensor, daylight sensor is available
Specification:
Product Name: 150W LED High Bay Light
Inpur Voltage: AC100-295V
Power: 150W
Working temperature: -20-+40 degree
CRI (color rendering index): >80Ra
Power factor: >0.97OF
Efficiency: >90%
Working frequency: 50-60 HZ
Lifetime: 50,000 Hrs
CCT: 3000-7000K
IP degree: IP65/IP43
LED Chip: SMD 3030
Luminous flux: 22150lm
Angle: 120°
Applications:
1.Industrial lighting places indoor,outdoor
2.Commercial lighting places internal,external
3.Warehouse,Workshop,Factory building,Toll gate,Gas station,Storeroom
4.Supermarket,Exhibition hall,Gymnasium,House,Hotel,Coffee House,Hospital,Kitchen,School
5.Restaurant,Shop,Corridor,Garage,Subway,Basement,Mine,Factory,plant,Displaying Hall,Stage
200W UFO Led High Bay Light
Product Description: The LED Linear High Bay is ideal for replacing traditional metal halide lamp and linear fluorescent high bay systems. Benefits include high efficiency, excellent color rendering, low glare, long life, dimming, and improved uniformity. Suggested mounting heights from 4m-10m...
Product Description:
The LED Linear High Bay is ideal for replacing traditional metal halide lamp and linear fluorescent high bay systems. Benefits include high efficiency, excellent color rendering, low glare, long life, dimming, and improved uniformity. Suggested mounting heights from 4m-10m with primary applications including warehousing, commercial facilities, manufacturing facilities, open and stack aisle applications.
Product Features:
> Up to 135lm/w
> SMD 3030
> High Quality Meanwell driver
> PF>0.97, Flicker free at 100Hz (by camera)
> Environmentally friendly, no mercury, No UV, No IR
> IP65 waterproof and dust proof
> Energy Efficiency Grade: A++
> 5-year-warranty
Basic Info
Model NO.:HS-HB200W-H2 Color Temperature:Warm White
Lamp Body Material: Magnesium Alloy Power:200W
Usage:Exhibition Lifespan: 50000H
IP Rating:IP65 Certification:CE, C-tick, RoHS, SAA, UL
Beam Angle:120 LED Chips:Samsung/Philips
Maintenance Instructions:
1. Cut off power before maintenance
2. Clean the glass of LED street light regular to keep good light transmission.
3. Clean the dusk on the surface and heat sink regular to keep good heat dissipation.
4. Do not use water or strong corrosive liquid to clean the lamp, dry cloth is better.
5. Replace LED driver: use screwdriver to open the cover, fetch out the driver. You can see three
AC wires, Match brown wire with "L", Blue with "N", Kelly or yellow with "G". The red or white wire on driver is the positive electrode, black wire is the negative electrode.
